Implant Motors
By Saeshin
TRAUS SIP10 IMPLANT MOTOR SET
Advanced Implant Engine
BLDC motor with high performance designed by Saeshin’s R&D technology
- Gear ratio – 1:5, 1:4, 1:1, 16:1, 20:1, 27:1, 32:1, 64:1
- 9 Program memory functions
- Automatic overload protection function
- Displays actual RPM and torque during operation to help maintain the proper working condition
- Motor Auto-Calibration function
- Multi-functional foot controller
- Optic Function(Option)
- Motor handpiece followed “ISO3964” for standard connection. (0~40K RPM)
- Double sealed contra angle handpiece
Contra Angle Handpiece
| Standard Gear Ratio | 20:1 |
|---|---|
| Speed | 15~2,000 RPM |
| Torque | Max 70 N.cm |
| Weight | 2.8 oz |
| Model name – Optic | CRB26LX, Non-optic : CRB26XX |
E-type Motor Handpiece
| Speed | 0~40,000 RPM (1:1) |
|---|---|
| Weight | 9.5 oz |
| Model name – Optic | MBP10SL, Non-optic : MBP10SX |
Control Unit
| Dimension | W233 x D269 x H120 |
|---|---|
| Weight | 6.2 lbs |
| 110v, UL Plug | |
| Model name – Optic, Non-optic | XIP10 |

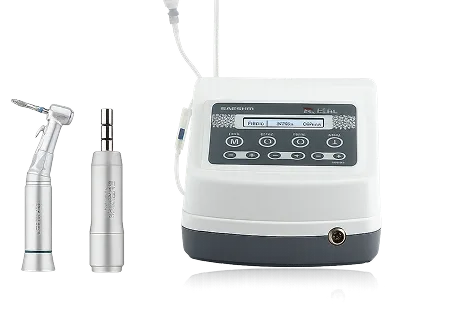

X-CUBE IMPLANT MOTOR SET
X-CUBE IMPLANT MOTOR
Economical and simple to use implant motor “XCUBE”
- Motor auto-calibration function
- E-type motor with ISO standard connection
- Maximum speed at 2,500 RPM with 20:1 gear ratio
- Maximum torque at 55 N.cm with 20:1 gear ratio
- Actual working condition displayed on screen
- Automatic overload protection system
- 9 programs memory function
- Motor & angle are autoclavable
Contra Angle Handpiece (ACL(B)-61I)
| Non-optic | |
|---|---|
| Gear ratio | 20:1 |
| Speed | Max 2,500 RPM |
| Weight | 2.2 oz |
E-type Motor (FORTE 100αEI)
| Non-optic | |
|---|---|
| Speed | Max. 50,000 RPM(1:1) |
| Weight | 9.5 oz |
Control box (X-CUBE)
| Dimension | W205 x D210 x H136 |
|---|---|
| Weight | 7.3 lbs |
| Max Torque | 55 N.cm |
